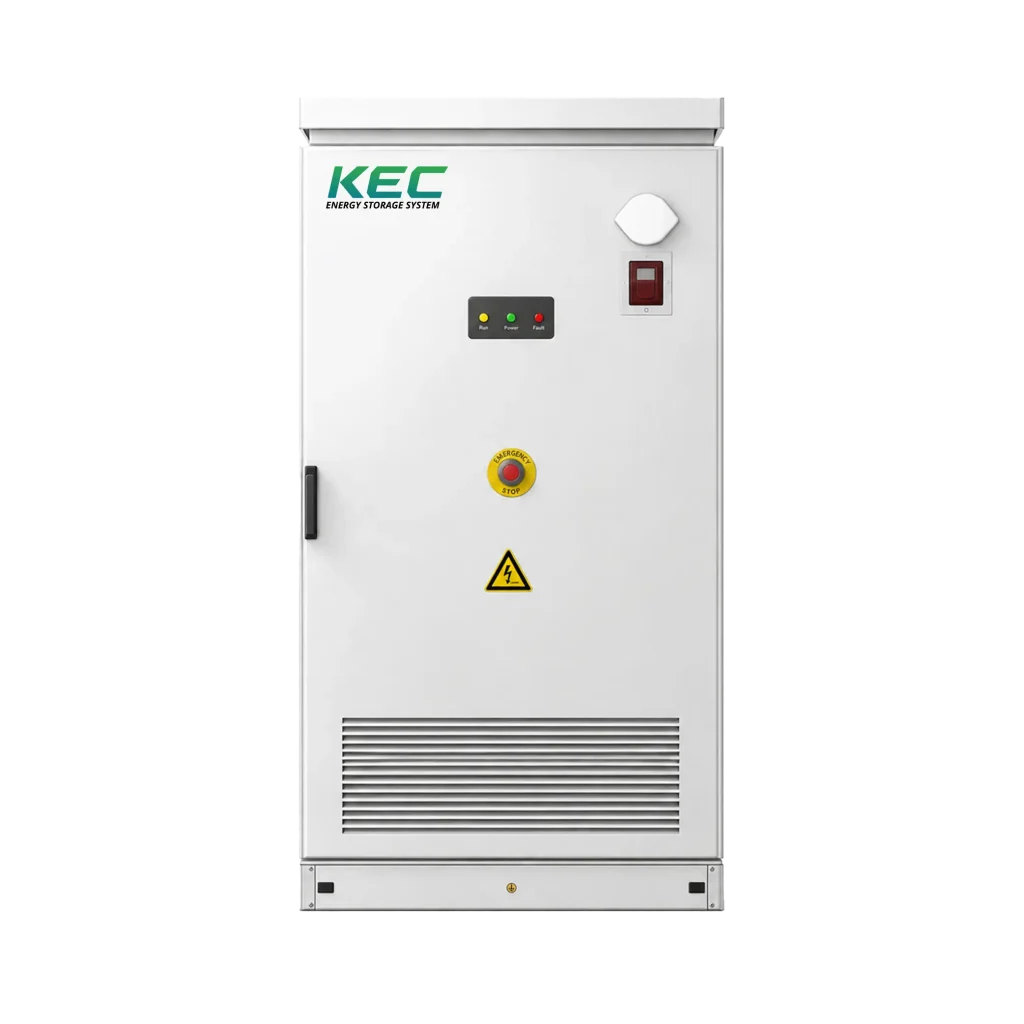

KEC-130-261
KEC 130-261

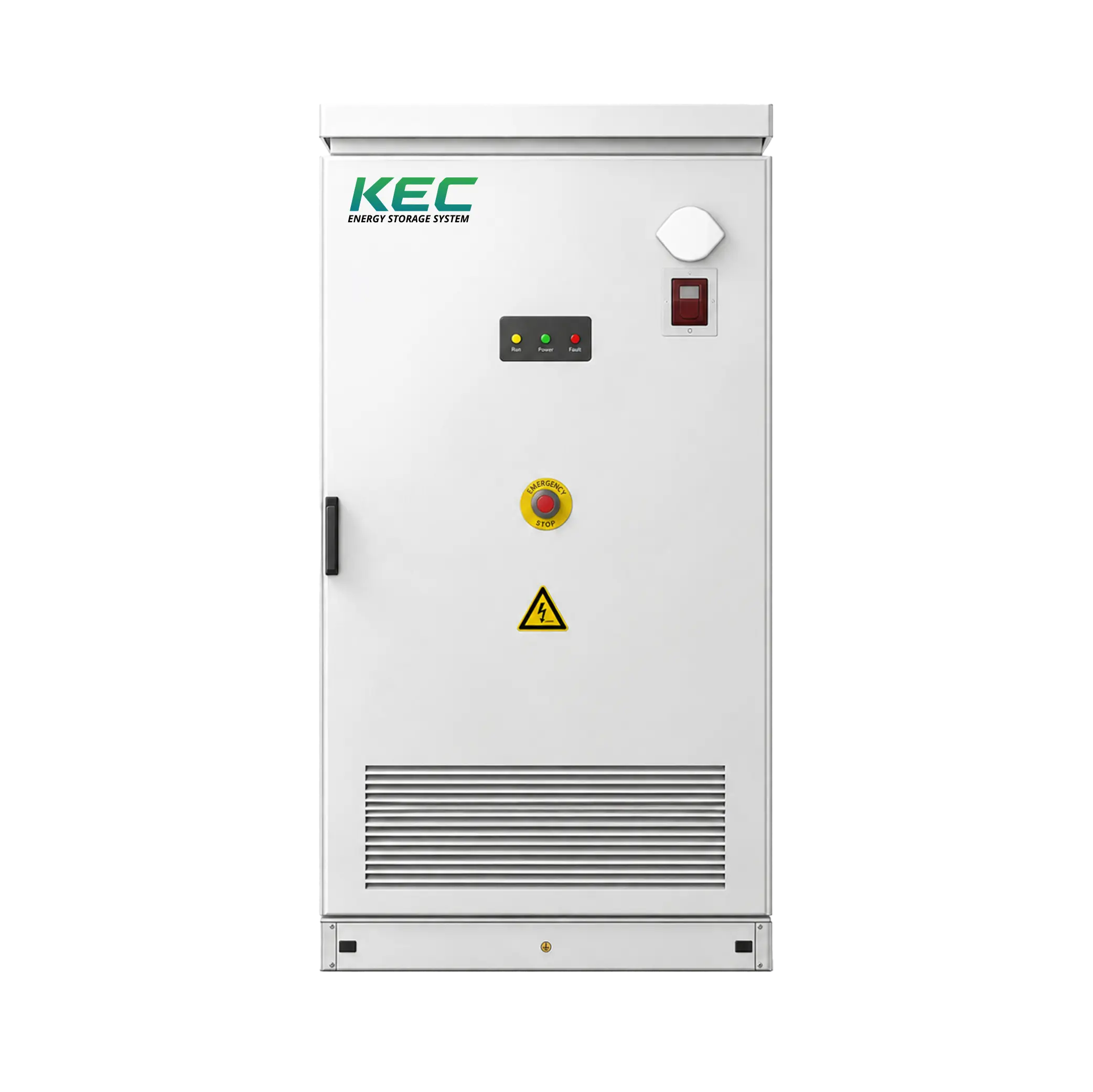

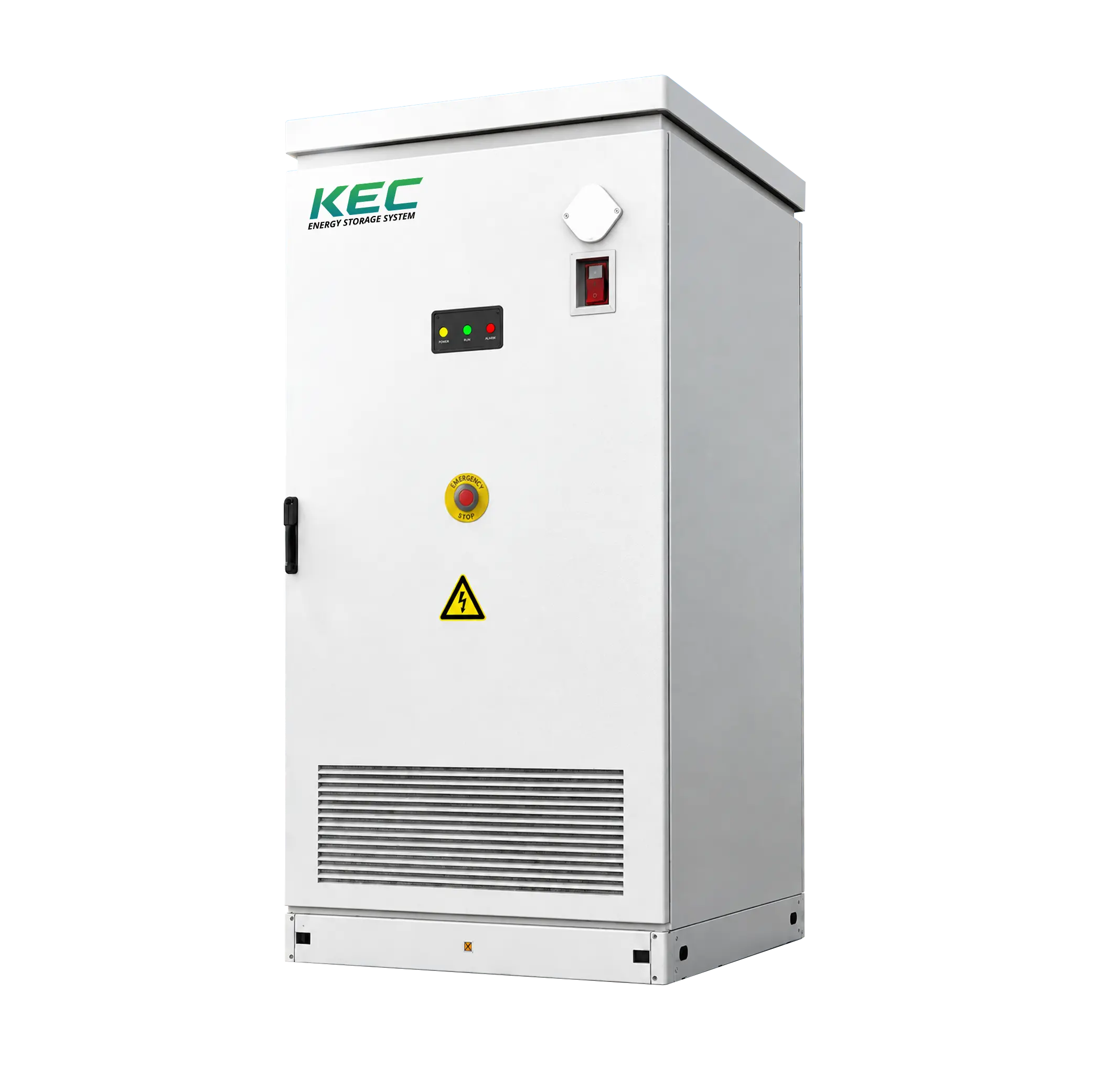

261 kWh / 130 kW — outdoor cabinet system
A compact outdoor energy storage system built around one 130 kW inverter and a 261 kWh battery cluster. The system integrates liquid cooling with 3 kW cooling and 2 kW heating, together with an aerosol fire protection system.
Designed to support peak shaving and valley filling, demand control, and anti-backflow functions. Commercial & Industrial Energy Storage · Outdoor Cabinet System
Key features

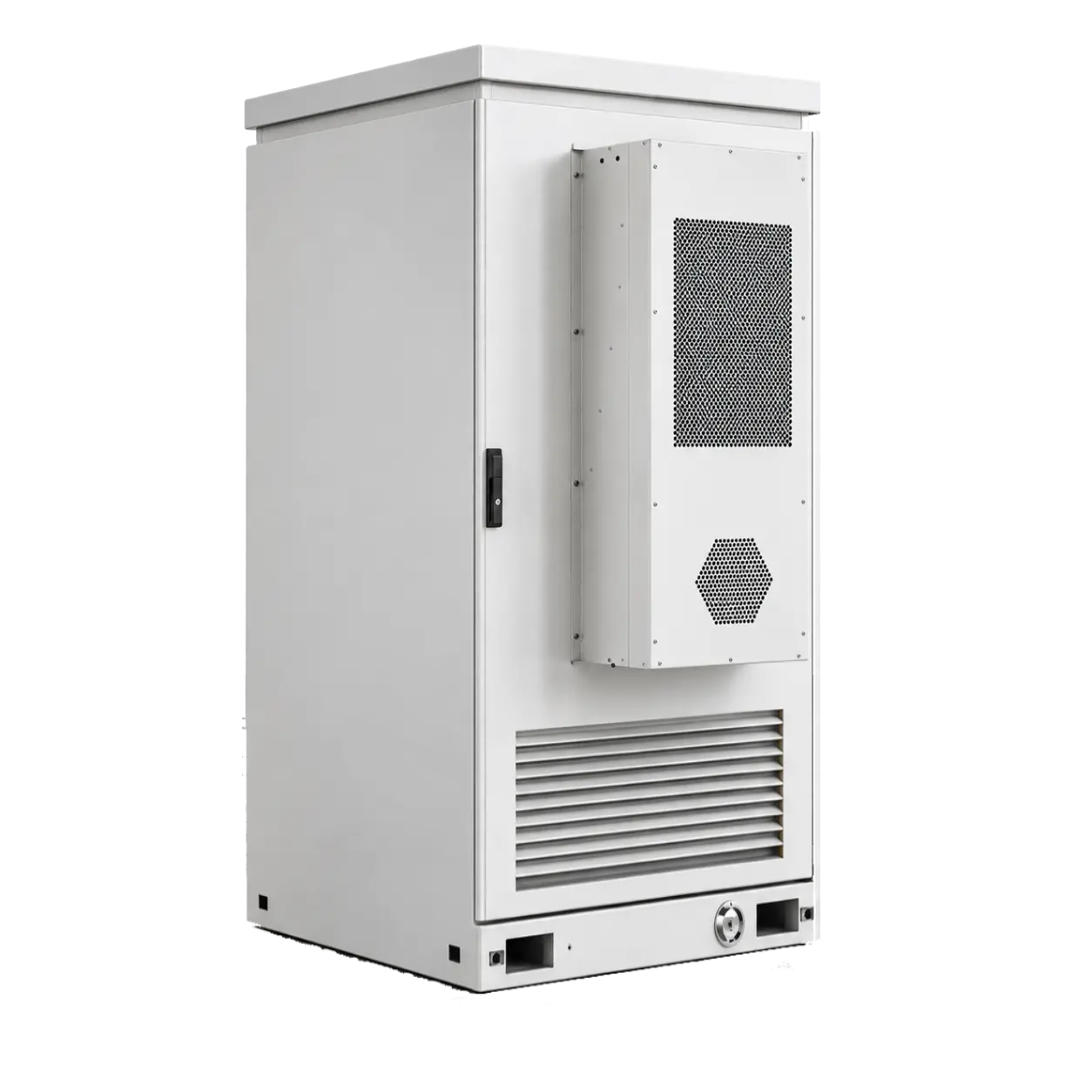

- Liquid cooling — 3 kW cooling and 2 kW heating
- Aerosol fire protection system
- Peak shaving and valley filling
- Demand control
- Anti-backflow function
Specifications
| Parameter | Value |
|---|---|
| System Capacity | 261 kWh |
| Battery Capacity | 314 Ah (LFP) |
| System Configuration | 1P 260S |
| Rated DC Voltage | 832 VDC |
| DC Voltage Range | 650 VDC ~ 949 VDC |
| Charging / Discharging Rate | 0.5P |
| Rated AC Power | 130 kW |
| Rated AC Voltage | 380 V -15% -10% |
| Accessing Method | 3P 4W + PE |
| Rated Frequency | 50 / 60 Hz |
| Power Factor | 1 cap – 1 ind |
| THDi | ≤ 3% (rated power) |
| Maximum Efficiency | Max. 91% |
| Working Temperature | -25 ~ 55°C (>50°C derating) |
| Altitude | ≤ 2000 m |
| Relative Humidity | 0 – 100% |
| Weight | ~3.1 t |
| Dimensions (L × W × H) | ~1349 × 1435 × 2300 mm |
| IP Rating | IP54 |
| Cooling Method | Liquid Cooling |
| Communication Access | CAN / Ethernet / 485 / Dry Contact |
