KEC 520-1040
KEC 520-1040
1040 kWh — four 1P52S battery clusters, 314 Ah LFP cells

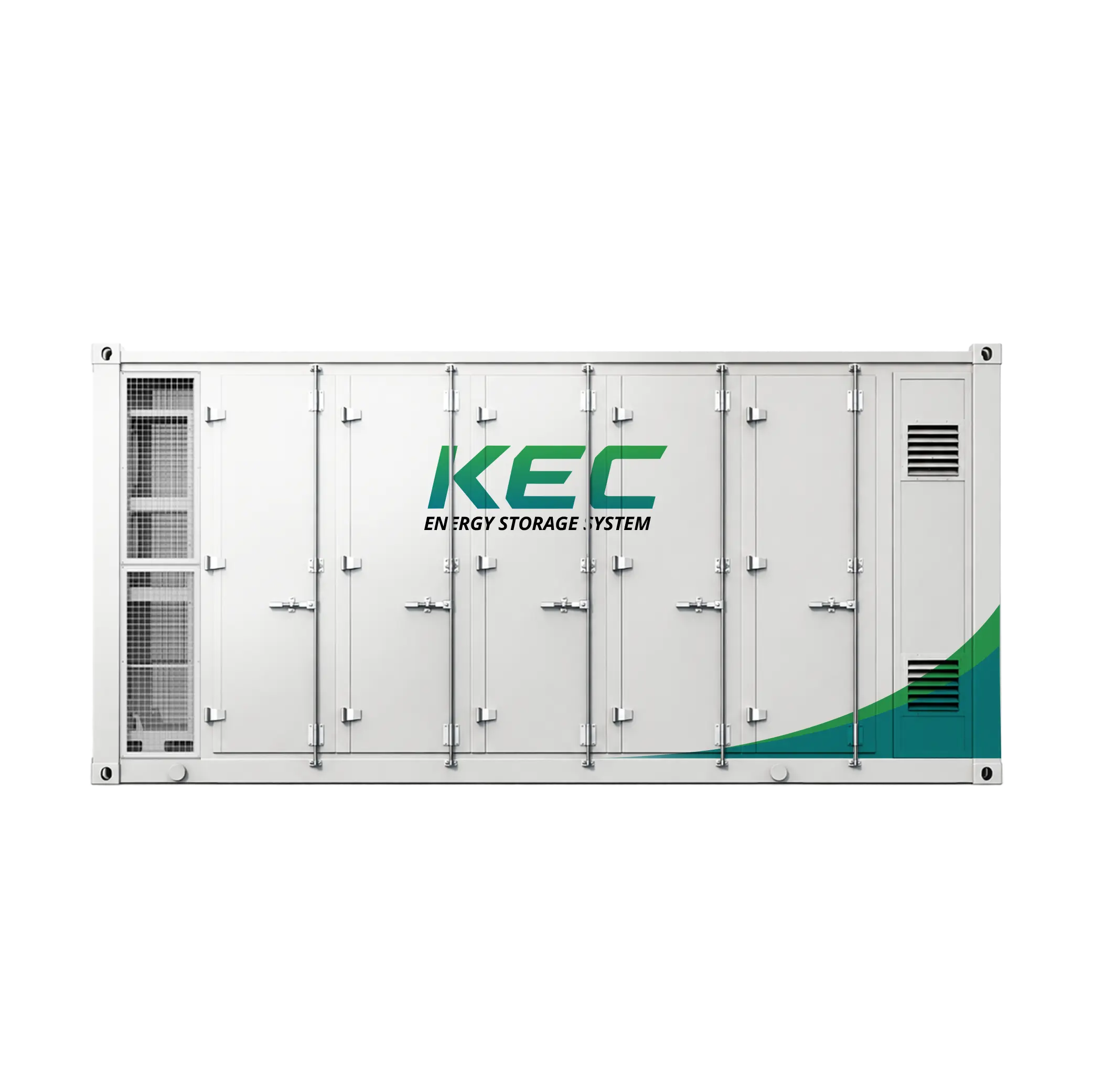

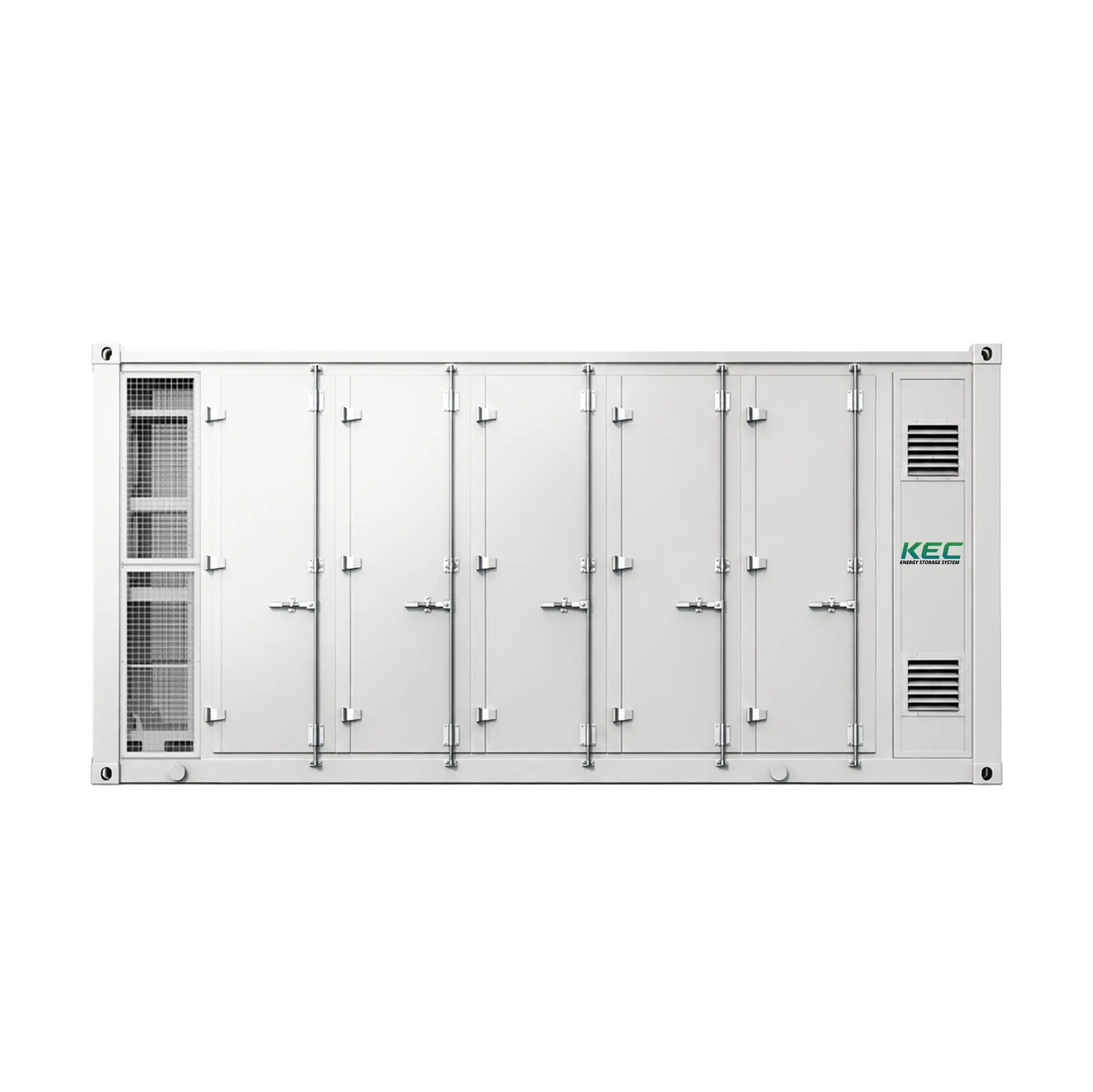

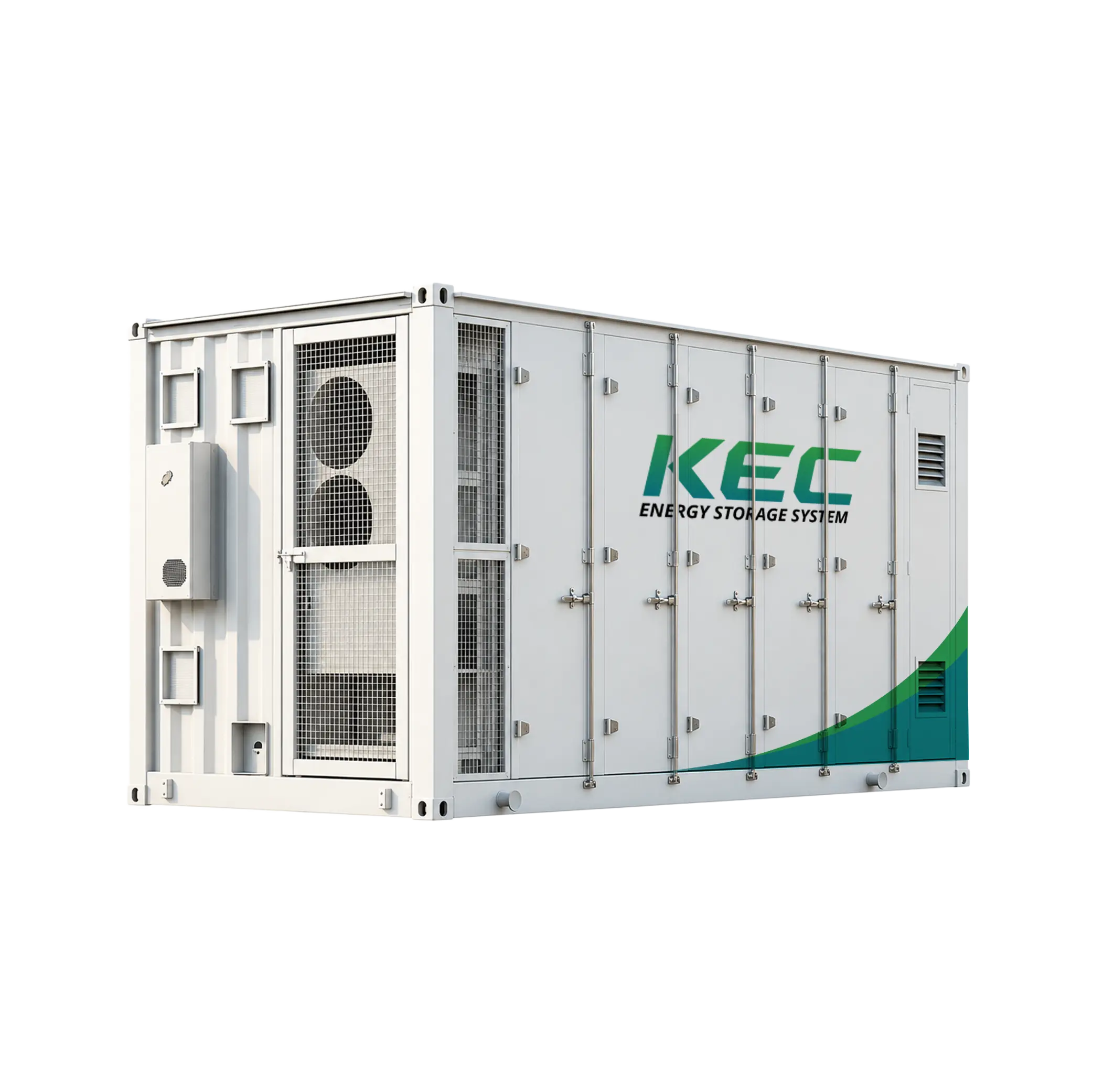

An integrated containerized energy storage system combining the battery system, grid-type converter system, prefabricated cabin temperature control, energy management system (EMS), and power distribution system in one solution.
Specifications
| Parameter | Value |
|---|---|
| Cell Model | 314 Ah Lithium Iron Phosphate Cell |
| Rated Capacity | 314 Ah |
| Rated Voltage | 3.2 V |
| Single Cell Energy | 1004.8 Wh |
| Total System Capacity | 1040 kWh |
| Battery Configuration | Four battery clusters, each 1P52S |
| Cycle Life | ≥ 6000 times @80% SOH |
| Operating Temperature | -20°C ~ 60°C |
| Low-temperature Version | Can be extended to -40°C |
| Protection Level | IP67 |
